Technics SL1200 MK2 Regulator progress – Alpha version finalized

—

by

dimkasta
in

Version 0.3.2024.a is finalized and I have ordered some sample PCBs from elecrow.

I have also assembled a first draft of a BOM, with parts that I either have or that I can easily order. I have also added some notes on the schematic. These can be shown on the HTML BOM file so that it can be used as an easy guide.

Here is the current BOM

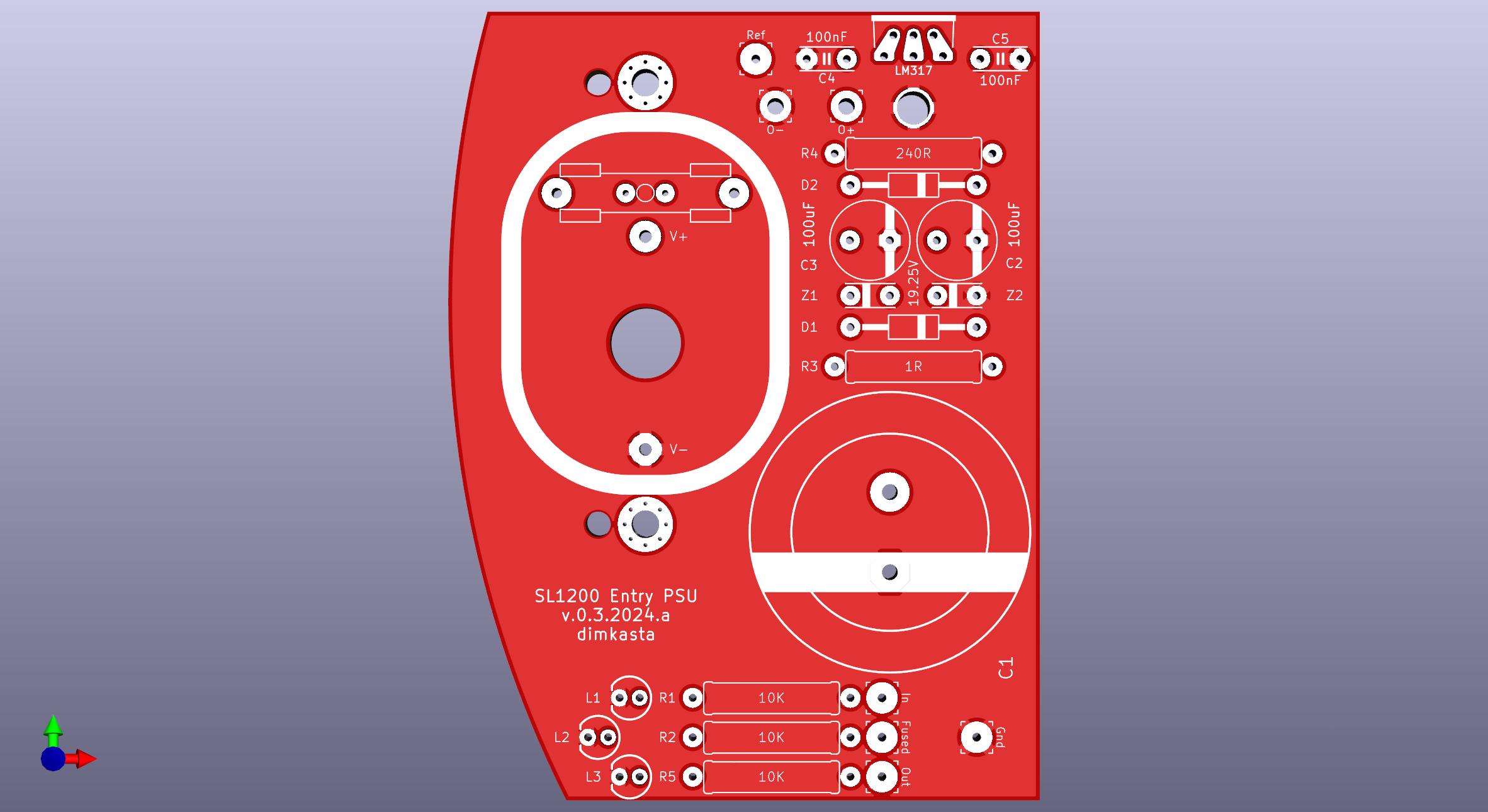

Here is the current PCB

And here is the current Schematic

Looking at it a couple of days later, there are a few obvious things I could have fixed, like the final reference names, or the values.

TODO for next version:

  • Fix the sequence of reference names.
  • Finalize the values based on availability of parts
  • Finalize BOM
